Differenzdruckmesgerät PERITACT 80
Data sheet: PERITACT 80
Download - data sheet: PERITACT 80

Diaphragm element
Smallest measuring range 0...50 Pa
Analogue output 0...10 V or 4...20 mA
Large analogue scale
Min. and max. contact possible
Also two-wire transmitter MZP80 available
Protection class IP 65

Produktbild: Differenzdruckmesgerät PERITACT 80
Differenzdruckmesgerät PERITACT 80

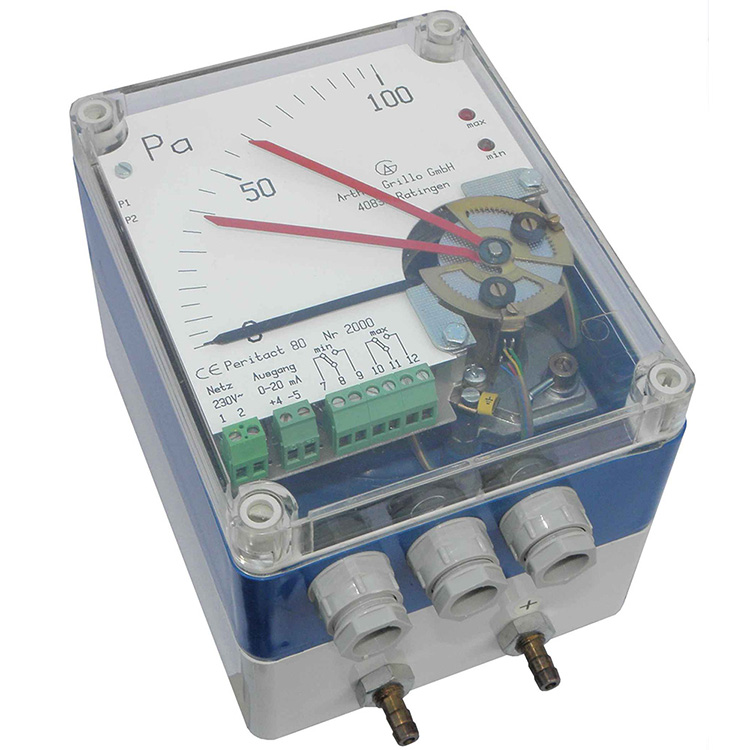

Manometer with diaphragm element for indication of pressure, under pressure or differential pressure of non aggressive gas. For flow measurements, by the differential pressure method, versions are available with a square graduation.

Zeichnung: Abmessungen Differenzdruckmessgerät PERITACT 80
Abmessungen Differenzdruckmessgerät PERITACT 80
Produktbild: Differenzdruckmessgerät PERITACT 80
Differenzdruckmessgerät PERITACT 80

PERFORMANCE:

Overpressure protection: Min. up to 10 times the span
Static pressure: Max. 0.2 bar

ACCURACY / ERROR LIMIT:

Zero drift: ± 0.75 %
Sum of linearity and hysteresis: ± 1.5 % of measuring range
Temperature drift zero point: ± 0.3 % / 10 K
Temperature drift measuring range: ± 0.2 % / 10 K

TECHNICAL SPECIFICATIONS:

Operating mode: Measuring mode
Measuring medium: Air or non-aggressive gases
Measuring principle: Electromechanical diaphragm measuring system
Measuring unit: Pa
Smallest measuring range: 0...50 Pa (0.5 mbar)
Largest measuring range: 0...10,000 Pa (100 mbar)
Measuring range: 0…50 Pa (0.5 mbar), 0…100 Pa (1 mbar), 0...200 Pa (2 mbar), 0…400 Pa (4 mbar), 0…500 Pa (5 mbar), 0...1000 Pa (10 mbar), 0...2000 Pa (20 mbar), 0…4000 Pa (40 mbar), 0…5000 Pa (50 mbar), 0…6000 Pa (60 mbar)
Measuring range selection: Factory preset
Ambient temperature: -10...+50 °C
Storage temperature: -25...+60 °C
Setpoint settings: 2 Setpoint pointer adjustable over the full scale range, per limit value 1 Output relay with potential-free change-over contact

PHYSICALLY:

Housing: ABS, transparent cover
Dimensions: 134 x 170 x 137 mm (BxHxT)
Weight: approx. 1500 g
Protection class: IP 65 according EN 60529
Display: Pointer display with scale
Electrical connections: Screw terminals
Pressure connections: Hose connections 8 mm ø

ELECTRONIC:

Power supply: 230 Vac, 24 Vac or 24 Vdc, for two-wire systems 13 ... 30 Vdc
Output: With mains supply 0/4 ... 20 mA or 0 ... 10 V or 4 ... 20 mA in two-wire technology

CONFORMITY:

EMC: EN 61000-6-2, EN 61000-6-3, CE-mark
RoHS: According RoHS-directive 2011/65/EU
