MEASURING SECTION according to DIN 19205

MEASURING SECTION according to DIN 19205

Pressure sensor in flow measurements of liquids
Calculation of the orifice according to DIN EN ISO 5167 19205
Use at higher temperatures and aggressive media
Material steel (St37) or stainless steel (1.4301)
Pressure socket integrated

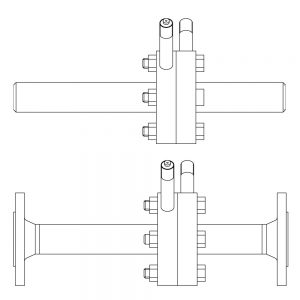

Installation to weld in (form E) or with flanges (form F)
Pressure stages up to PN40
Special versions available on request

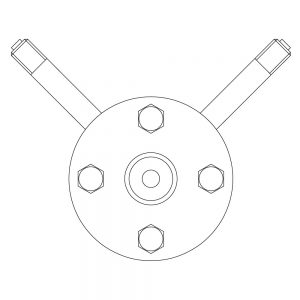

Measuring section and orifice plates with ring chamber fixed attached to the inlet pipe piece- and outlet page. These are run for the size range DN15 … DN40.

Operating mode:
Effective pressure transmitter
Measuring medium:
Liquids, gases and vapors
Measuring principle:
Measuring diaphragm
Measuring unit:
Flow rate
Max. temperature:
400 °C

Materials:
C22

Construction:
Standard diaphragm with two-part mounting ring Material Steel St37

Shutter discs:
Interchangeable, Material Stainless steel 1.4301

Overall length:
550 mm up to1300 mm

Pressure connections:
G1 / 2A, 100 mm long, steel St35.8
Pressure stages:
PN100
