Thermocouples - 1500°C
Data sheet: thermocouples
Download - data sheet: thermocouples

Temperature measurement up to 1500 °C
The production is based on the following DIN-standards: 43710, 43 720, 43 724, 43 729, 43 732, 43733, 43 734

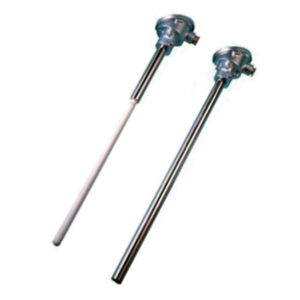

Product picture: Thermocouples
Thermocouples - 1500°C

Thermocouples for temperature measurement, especially at higher temperatures, e.g. in flue gases, in salt- and metal smelting, in annealing, tempering and hardening furnaces, etc.

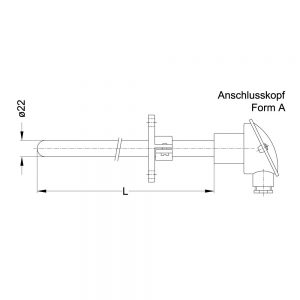

Zeichnung: Abmessungen Thermolemente
Abmessungen Thermolemente
Product picture: Thermocouples
Thermocouples - 1500°C

ACCURACY / ERROR LIMITS:

Measured tolerance: <0.25% ± 0.15 °C
Long-term stability: max. R0 drift 0.05% / year

TECHNICAL SPECIFICATIONS:

Operating mode: Measurement mode
Measured material: Temperature
Sensor: Pt100 class A according to DIN EN 60751; PT1000 class A according to DIN EN 60751
Measuring unit: °C
Maximum temperature: Max. 1500 °C
Measuring ranges: 0...1500 °C

PHYSICALLY:

Protection tube: Ceramic type 530, 26 mm ø
Connection head: Light metal form A32
Inside head: Gas-tight ceramic type 610
Sensor tube length: 500, 710, 1000, 1400 mm
Sleeve: Straight thermocouple with sliding stop flange for PtRh-Pt Type K
Montage: Threaded sleeve, displaceable, M22, G1A
DIN-standard: 43710, 43720, 43724, 43729, 43732, 43733, 43734
