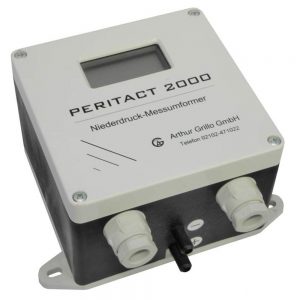

LOW PRESSURE TRANSMITTER PERITACT 2000

Low pressure transmitter

Electromechanical diaphragm measuring system
Diaphragm element
Smallest measuring range 0…50 Pa
Digital display 3 1/2 digits
Analog output 0…10 V and 4…20 mA
Supply voltage 230 Vac, 24 Vac or 24 Vdc
Protection class IP 65
Also available as two-wire-transmitter (PERITACT 2000-2L)

Manometer with diaphragm element for indication of pressure, under pressure or differential pressure of non aggressive gas.

Operating mode:
Measuring mode
Measuring medium:
Air or non-aggressive gases
Measuring principle:
Electromechanical diaphragm measuring system
Measuring unit:
Pa
Smallest measuring range:
0…50 Pa (0.5 mbar)
Largest measuring range:
0…10.000 Pa (100 mbar)

Measuring ranges:
0…50 Pa (0.5 mbar), 0…100 Pa (1 mbar), 0…200 Pa (2 mbar), 0…400 Pa (4 mbar), 0…500 Pa (5 mbar), 0…1000 Pa (10 mbar), 0…2000 Pa (20 mbar), 0…4000 Pa (40 mbar), 0…5000 Pa (50 mbar), 0…6000 Pa (60 mbar), 0…10000 Pa (100 mbar)
Measuring range selection:
factory preset
Damping:
adjustable in 3 steps
Characteristic:
linear or square root
Ambient temperature:
-10…+50°C
Storage temperature:
-25…+60°C
Control characteristic:
PI – algorithm
Setpoint settings:
2 Setpoint pointer adjustable over the full scale range,
per limit value 1 Output relay with potential-free change-over contact

Contact load:
250 Vac, 6A, induction-free load

Overpressure protection:
min. up to 10-times the measuring range

Static pressure:
max. 0.2 bar

Zero point calibration:
Adjustable by REEDcontact, no cyclic zero-point calibration required

Reaction time:
direct

Zero drift:
±0.75%

Sum of linearity and hysteresis:
±1%

Temperature drift zero point:
±0.3% / 10K

Temperature drift measuring range:
±0.2% / 10K

Housing:
Ultramid/ABS, black / grey

Dimensions:
122 x 120 x 85 mm (w x d x h)

Weight:
approx. 900 g

Protection class:
IP65 according EN 60529

Display:
3 1/2-digit digital LCD display, digit height 13 mm

Electrical connections:
Screw terminals, cable entry: 2 x M16 x 1.5

Pressure connections:
Hose connections 8 mm ø

Power supply:
230 Vac, 24 Vac or 24 Vdc

Output:
0…10 V and 0…20 mA via DIP switch switchable to 4…20 mA

EMC:
EN 61000-6-2, EN 61000-6-3, CE-mark
RoHS:
According RoHS-directive 2011/65/EU
