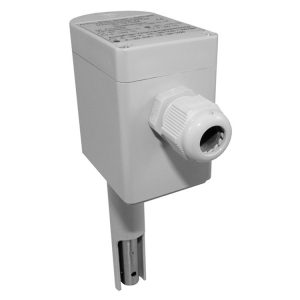

Produktbild: Messumformer MTA90
Messumformer MTA90
Data sheet: MTA90P
Download - data sheet: MTA90P

Resistance element Pt100 class A DIN EN 60751
4 calibrated measuring ranges selectable via DIP-Switch
Double-wall sensor tube as weather protection
Analogue output 4...20 mA
Plastic housing ABS, protection class IP 65

Produktbild: Messumformer MTA90P
Messumformer MTA90P

The series MTA90-P is designed for temperature measurement in moist environments or outdoors. The case has IP 65 protection, the sensor tube is double walled as rain and run-radiation protection. Electronics running in microcontroller technology with 4 calibrated measuring ranges that can be selected via DIP switches.

Zeichnung: Abmessungen Messumformer MTA90P
Abmessungen Messumformer MTA90P
Produktbild: Messumformer MTA90
Messumformer MTA90P

ACCURACY / ERROR LIMITS:

Measured tolerance: <0.25% ± 0.15 °C
Long-term stability: max. R0 drift 0.05% / year

TECHNICAL SPECIFICATIONS:

Operating mode: Measurement mode
Measured material: Temperature
Sensor: Pt100 class A according to DIN EN 60751
Measuring unit: °C
Maximum temperature: Max. t0 °C
Measuring ranges: 4 calibrated measuring ranges can be selected via DIP switch
Ambient temperatur: -10...+70 °C

PHYSICALLY:

Protection tube: 9 mm stainless steel, w. 1.4571
Connection head: Plastic ABS, light gray
Protection class: IP 65 according EN 60529
Electrical conecctions: Two-wire, three-wire technology
Weight: Aprrox. 200 g

ELECTRONIC:

Output voltage: 13 ... 30 Vdc, any polarity or 24 Vdc or 24 Vac, ± 25%
Output current: 0...10 V or 4...20 mA
