DIFFERENTIAL PRESSURE MANOMETER DA85

DIFFERENTIAL PRESSURE MANOMETER DA85

Diaphragm element
Smallest measuring range 0…200 Pa
Analogue scale
Compact size of about ca. 70 mm

Manometer with diaphragm element for indication of pressure, under pressure or differential pressure of non-aggressive gas.

Operating mode:
Measuring mode
Measuring medium:
Air or non-aggressive gases
Measuring principle:
Electromechanical diaphragm measuring system
Measuring unit:
Pa
Smallest measuring range:
0…200 Pa (2 mbar)
Largest measuring range:
0…6000 Pa (60 mbar)

Measuring range:
0…200 Pa (2 mbar), 0…400 Pa (4 mbar),
0…1000 Pa (10 mbar), 0…2000 Pa (20 mbar),
0…4000 Pa (40 mbar), 0…6000 Pa (60 mbar)
Measuring range selection:
Factory preset
Ambient temperature:
-10…+50°C
Storage temperature:
-25…+60°C

Overpressure protection:
0.2 bar

Static pressure:
max. 0.2 bar

Zero point calibration:
Adjustable by REEDcontact, no cyclic zero-point calibration required

Reaction time:
direct

Zero drift:
±0.75%

Sum of linearity and hysteresis:
< 400 Pa ± 3 %; > 400 Pa ± 2 %

Temperature drift zero point:
±0.3% / 10K

Temperature drift measuring range:
±0.2% / 10K

Housing:
ABS

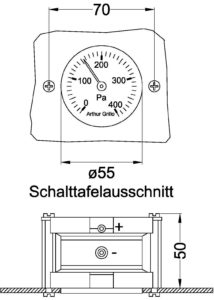

Dimensions:
diameter 70 mm, depth 50 mm

Weight:
approx. 90 g

Protection class:
IP54 according EN60529

Display:
Pointer display with scale

Scaling:
 Pointer display with scale

Pressure connections:
Hose connections 5 mm ø

RoHS:
According RoHS-directive 2011/65/EU
